Control & Monitoring Systems

SP2700 Control system

By April 13, 2023November 18th, 2024No Comments
De hydrospoiler, BARKE®-FLAPROER, BOSS™ OQM, dmc, dredging

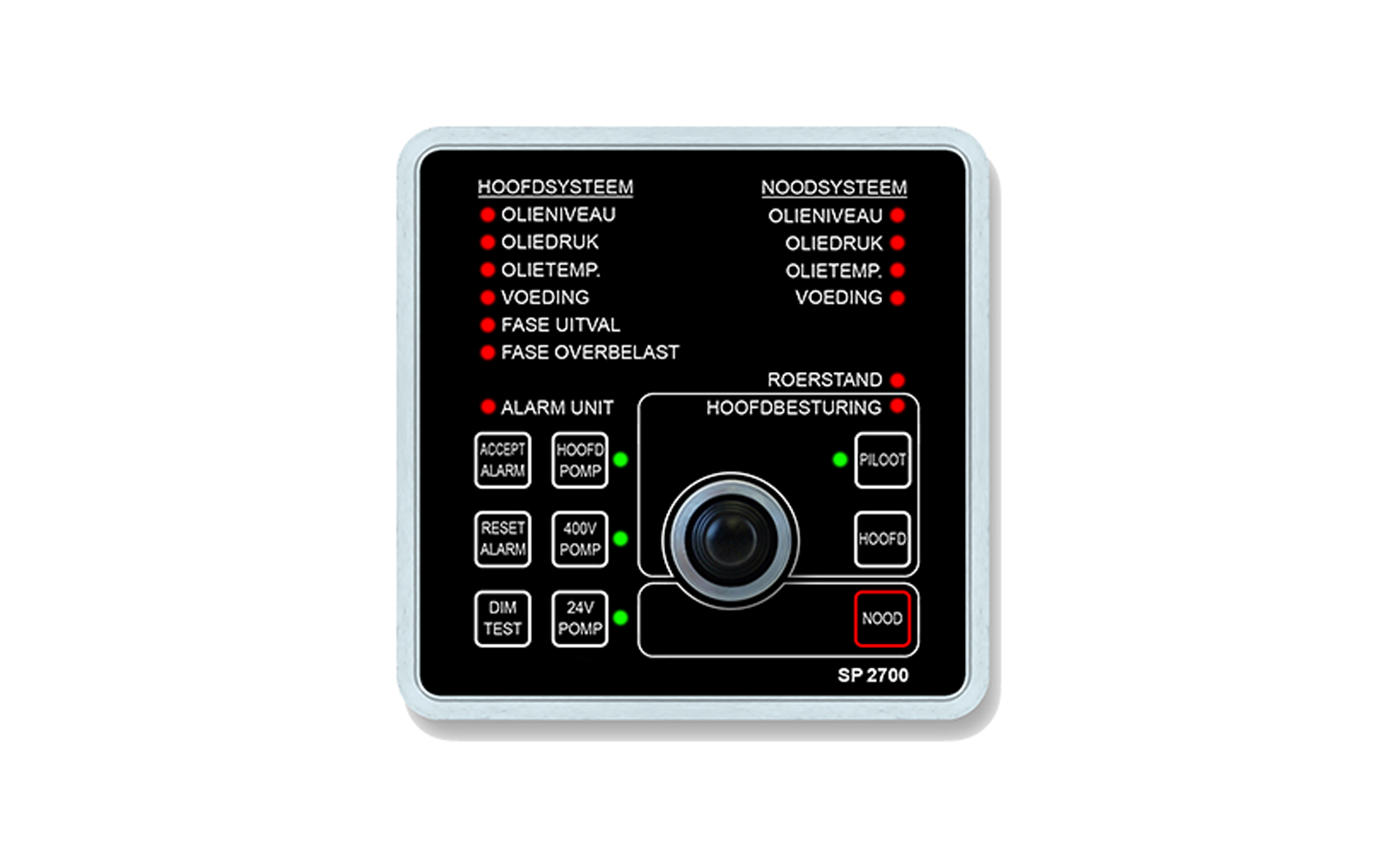

SP2700 Control System

SP2700 Control system

REALTIME DIGITAL INSIGHT INTO YOUR CONTROL SYSTEM

The type SP2700 Control system is a real-time redundant digital steering installation with a control and alarm system. Three options are built into the system, allowing you to choose between main or pilot steering or directly linked emergency steering. FU steering is optional. Alarms are indicated directly on the SP 2700 starter unit.

A unique characteristic of the SP2700 Control system is its software, which simplifies and improves the start-up process, maintenance and services. In addition, the system was developed with the latest technologies and is in accordance with current and expected regulations.

The SP 2700 system consists of:

  • SP2700 alarm and control panel
  • RI2700 rudder indicator
  • TMU2700 feedback unit
  • SP1000 control and starter unit

The SP2700 is extra safe and performs considerably above its class. This is because the system was approved and tested for marine standards in enclosed spaces with ambient temperatures from -5° up to +70°.

ADVANTAGES

Summary

  • Easy, accurate and reliable start up
  • Quick and easy service
  • Modern and future-oriented system
  • Compact
  • Suitable for vessels sailing on inland waterways
  • Ready for Internet Of Things (IOT)

APPLICATION

  • The SP 2700 panel can be connected to additional units (i.e., alarms) and, it will be possible to link to extensions for multiple operation locations and communication with external systems. This offers possibilities for indicating status information and data logging maintenance information, as well as internet applications to enable service and control from a remote location trough cloud connection.

Media

Control & monitoringssystems

BOSS SP2700
Data logger (SPL)

BOSS™ SPL is a package product for the SP2700 control system. It is an extra option for the standard SP2700 configuration. With the SPL application, the SP2700 control system is integrated into the BOSS™ platform. When the system is integrated, all the alarms and every signal from the SP2700 will be logged. The logged data can be accessed through the cloud in combination with BOSS™ Dmc Cloud Connect (DCC).

BOSS™ SPL combined with the DCC application give the possibility for e.g. the vessel operator or DMC service engineer to log in from a remote location to view the real-time situation of the SP2700 control system, thus the steering behaviour of the vessel. These insights allow for fast and efficient service to take place if necessary, which ultimately minimises the downtime of the vessel.
