D-Type Anchor Shackle
CONNECTING YOUR CHAINS
The Kenter joining shackle is used to connect two separate lengths of chains. The shackle consists of two separate halves that are securely joined together with a centre chock and taper pin. Remove the taper pin to ‘unlock’ the shackle and connect your chains.
ADVANTAGES
Summary
- ON STOCK
We keep the full range of ‘D’ shackles in stock – from 12.5 mm up to 117 mm – to guarantee excellent availability. - TRIED & TESTED DESIGN
Built to ISO 1704 standards. - CHOOSING THE RIGHT EQUIPMENT
The ‘D’ shackle meets all classification regulations.

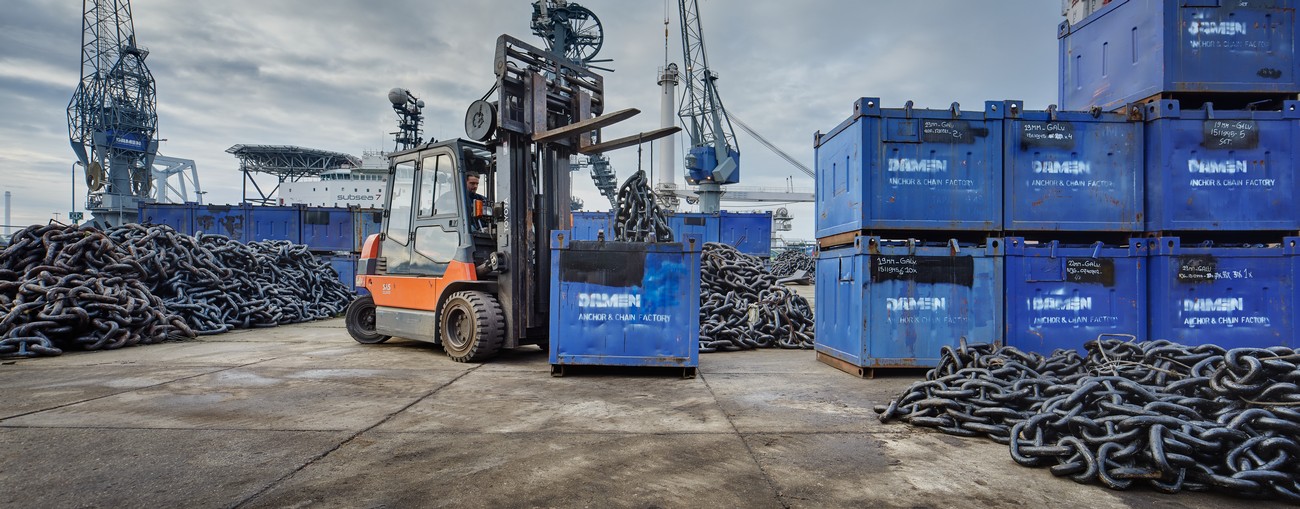

INVENTORY
Whether you need anchors, chains or towing equipment, you will find it at Damen AKF. We keep a wide range of products in stock to prevent ordering delays. The result for you? Get what you need and get back in business with minimal downtime. It’s as simple as that. If you need advice with making the right choice, don’t hesitate to ask one of our knowledgeable team.
Specifications
| Size (d) | d5 | L5 | P5 | W5 | F2 |
|---|---|---|---|---|---|
| 12.5 | 17.5 | 109 | 57.5 | 65 | 39 |
| 14 | 19.5 | 122 | 64.5 | 73 | 43 |
| 16 | 22.5 | 139 | 73.5 | 83 | 50 |
| 17.5 | 24.5 | 152 | 81 | 91 | 54 |
| 19 | 26.5 | 165 | 87 | 99 | 59 |
| 20.5 | 28.5 | 178 | 94 | 107 | 64 |
| 22 | 31 | 191 | 101 | 114 | 68 |
| 24 | 34 | 209 | 110 | 125 | 72 |
| 26 | 37 | 226 | 120 | 135 | 81 |
| 28 | 39 | 244 | 129 | 146 | 87 |
| 30 | 42 | 261 | 138 | 156 | 93 |
| 32 | 45 | 278 | 147 | 166 | 99 |
| 34 | 48 | 296 | 156 | 176 | 105 |
| 36 | 50 | 313 | 166 | 187 | 112 |
| 38 | 53 | 331 | 175 | 198 | 118 |
| 40 | 56 | 348 | 184 | 208 | 124 |
| 42 | 59 | 365 | 193 | 218 | 130 |
| 44 | 62 | 383 | 202 | 229 | 136 |
| 46 | 64 | 400 | 212 | 239 | 143 |
| 48 | 67 | 418 | 221 | 250 | 149 |
| 50 | 70 | 435 | 230 | 260 | 155 |
| 52 | 73 | 452 | 239 | 270 | 161 |
| 54 | 76 | 470 | 248 | 281 | 167 |
| 56 | 78 | 487 | 258 | 291 | 174 |
| 58 | 81 | 505 | 267 | 202 | 180 |
| 60 | 84 | 522 | 276 | 312 | 186 |
| 62 | 87 | 539 | 285 | 322 | 192 |
| 64 | 90 | 557 | 294 | 333 | 198 |
| 66 | 92 | 574 | 304 | 343 | 208 |
| 68 | 95 | 592 | 313 | 354 | 211 |
| 70 | 98 | 609 | 322 | 364 | 217 |
| 73 | 102 | 635 | 336 | 380 | 226 |
| 76 | 106 | 661 | 350 | 395 | 236 |
| 78 | 109 | 678 | 359 | 406 | 242 |
| 81 | 113 | 705 | 373 | 421 | 251 |
| 84 | 118 | 731 | 386 | 437 | 260 |
| 87 | 122 | 757 | 400 | 452 | 270 |
| 90 | 126 | 783 | 414 | 468 | 279 |
| 92 | 129 | 800 | 422 | 478 | 285 |
| 95 | 133 | 827 | 437 | 494 | 295 |
| 97 | 136 | 844 | 446 | 504 | 301 |
| 100 | 140 | 870 | 460 | 520 | 310 |
| 102 | 143 | 887 | 468 | 530 | 316 |
| 105 | 147 | 914 | 483 | 546 | 326 |
| 107 | 150 | 931 | 492 | 556 | 332 |
| 111 | 155 | 966 | 511 | 577 | 344 |
| 114 | 160 | 992 | 524 | 593 | 353 |
| 117 | 164 | 1018 | 538 | 608 | 363 |
| 120 | 168 | 1044 | 552 | 624 | 372 |
| 122 | 171 | 1061 | 560 | 634 | 378 |
| 124 | 174 | 1079 | 570 | 645 | 384 |
| 127 | 178 | 1105 | 584 | 660 | 394 |
| 130 | 182 | 1131 | 598 | 676 | 403 |
| 132 | 185 | 1148 | 606 | 686 | 409 |
| 137 | 192 | 1192 | 630 | 712 | 425 |
| 142 | 199 | 1235 | 652 | 738 | 440 |
| 147 | 206 | 1279 | 6767 | 764 | 456 |
| 152 | 213 | 1322 | 699 | 790 | 471 |
| 157 | 220 | 1366 | 722 | 816 | 487 |
| 162 | 227 | 1409 | 745 | 842 | 502 |
GLOBAL PRESENCE
Worldwide
service
Damen Anchor & Chain Factory is backed up by the worldwide presence of Damen Shipyards Group. With a global network of more than 30 yards, we are never far away. This puts Damen Anchor & Chain Factory in the unique position to provide its customers with support on a global scale. Whether you need a new product, repairs or testing, you will receive the service you deserve.
